SIRUI TY SERIES
QUICK RELEASE PLATES,
PLATFORMS, L-BRACKETS, BASES

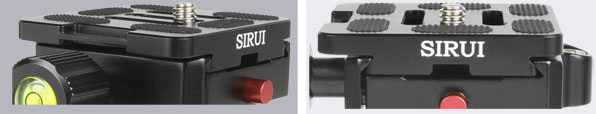

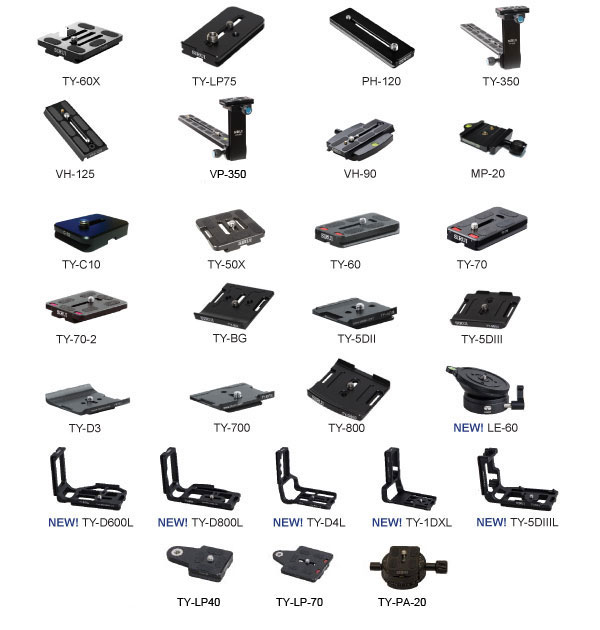

| TY-60X |
TY-LP75 |
PH-20 |
TY-350 |
VH-125 |
|
VH-90 |
MP-20 |
TY-C10 |
| TY-50X |
| TY-60 |
| TY-70 |
| TY-70-2 |
| TY-BG |
| TY-5DII |
| TY-5DIII |
| TY-D3 |
| TY-D700 |
| TY-D800 |
| LE-60 |
| TY-D600L |
| TY-D800L |
| TY-D4L |
| TY-1DXL |
| TY-5DIIIL |
| TY-LP-40 |
| TY-LP-70 |
| PA-20 |
All SIRUI TY Series Quick Release Plates are made from forged aluminum alloy. The forging technique produces high-density metals with much greater strength than die-cast methods.
When using long lens or heavy cameras, it is very important to make sure that there is a perfect fit between the camera and quick release plate. For that reason, SIRUI offers a selection of quick release plates for different types and models of cameras.
Standard TY and VH Series QR plates are designed with slide-stopping rubber mats to prevent the camera/lens from moving while tightening the screw. All plates are Arca-compatible, except for the VH-125D, VH-350 and VH-90 which are Manfrotto compatible.
The rubber mats are designed to prevent the camera from shifting or twisting as you move the ball head. And the Special QR Plates are model specific for a perfect fit.

TY SERIES QUICK RELEASE PLATE |
Item # |
Sirui
Model # |
Size
in (mm) |
Wgt
oz (g) |
For |
For
Head |
MSRP |
| BSRTYLP75 |
TY-LP75 |
2.91 x 1.54 x 0.425 (74 x 39 x 10.8) |
1.6 (45.4) |
Long Telephoto Lenses |
G/K/E Series |
$48.00 |
| BSRPH120 |
PH-120 |
.4.72 x 1.53 x 0.425 (120 x 39 x 12) |
2.6 (73.7) |
Long Telephoto Lenses |
PH-20 |
$59.95 |
| BSRVH125 |
VH-125D |
4.92 x 1.97 x 0.47 (125 x 50 x 12) |
0.26 (0.118) |
All Cameras |
VH Series |
$69.95 |
| BSRTY350 |
TY-350 |
18.9 x 3.54 x 6.1 (482 x 90 x 155) |
16.2 (460) |
Long Telephoto Lenses |
PH-20/K30/K40 |
$134.95 |
| BSRTYBG |
TY-BG |
2.05 x 2.17 x 0.55 (52 x 55 x 14) |
1.3 (37.2) |
Most DSLR w/battery grip |
G/K/E Series |
$52.00 |
| BSRTYC10 |
TY-C10 |
1.18 x 1.54 x 0.31 (30 x 39 x 8) |
0.6 (17) |
All Cameras |
C10X |
$19.95 |
| BSRTY50 |
TY-50X |
1.97x 1.54 x 0.425 (50 x 39 x 10.8) |
1.1 (31.4) |
All Cameras |
G10X/ G20X/ K20/E |
$40.00 |
| BSRTY50X |
TY-50X |
1.97x 2.15 x 0.37 (50 x 54.5 x 9.5 |
1.3 (36.9) |
All Cameras |
G10X/ G20X/ K20/E |
$40.00 |
| BSRTY60 |
TY-60 |
2.36 x 1.93 x 0.42 (60 x 49 x 10.8) |
1.4 (39.6) |
All Cameras |
G20X/ K20 |
$45.00 |
| BSRTY60X |
TY-60X |
2.36 x 2.15 x 0.37(60 x 54.5 x 9.5) |
1.6 (45.4) |
All Cameras |
G10X/ K20 |
$45.00 |
| BSRTY70 |
TY-70 |
2.76 x 1.54 x .425 (70 x 39 x 10.8) |
1.3 (37.2) |
All Cameras |
G10X/ K20 |
$45.00 |
| BSRTY70S |
TY-70-2 |
2.76 x 2.36 x .425 (70 x 60 x 10.8) |
2.1 (60.3) |
All Cameras |
K30/K40 |
$48.00 |
| BSRTY70X |
TY-70X |
2.76 x 2.15 x .375 (70 x 54.5 x 9.5) |
1.7 (48.2) |
All Cameras |
G10X/ K20 |
$45.00 |
| BSRTY5D |
TY-5DII |
1.89 x 1.75 x 0.43 (48 x 44.5 x 11) |
1 (28.5) |
Canon 5D Mark II |
G/K/E Series |
$48.00 |
| BSRTY5D3 |
TY-5Dlll |
2.45 x 1.98 x 0.49 (62.2 x 50.4 x 12.5) |
1.4 (39.6) |
Canon 5Dlll |
G/K/E Series |
$52.00 |
| BSRTYD3 |
TY-D3 |
2.6 x 2.74 x 0.57 (66 x 69.7 x 14.6) |
1.7 (48.2) |
Nikon D3 |
G/K/E Series |
$48.00 |
| BSRTYD700 |
TY-D700 |
2.36 x 1.74 x 0.425 (60 x 44.2 x 10.8) |
1.1 (31.5) |
Nikon D700 |
G/K/E Series |
$48.00 |
| BSRTYD800 |
TY-D800 |
2.36 x 2.15 x 0.425 (60 x 54.5 x 10.8) |
1.3 (36.9) |
Nikon D800 |
G/K/E Series |
$52.00 |
| BSRTYLP40 |
TY-LP40 |
2.56 x 1.54 x 0.425 (65 x 39 x 10.8) |
1.4 (39.6) |
All Cameras |
C/G/K Series |
$29.95 |
| BSRTYLP70 |
TY-LP70 |
3.54 x 2.72 x 0.425 (90 x 69 x 10.8) |
2.9 (83) |
All Cameras |
G/K/E Series |
$44.95 |
| SIRUI L-BRACKETS |
Item # |
Sirui
Model # |
Size
in (mm) |
Wgt
oz (g) |
For |
For
Head |
MSRP |
| BSRTY5DIIIL |
TY-5DIIIL |
4.5 x 2.04 x 3.31 (114 x 52 x 84) |
3.2 (91) |
Canon 5D Mark lll |
G/K Series |
$119.95 |
| BSRTYD60L |
TY-D600L |
4.3 x 2.4 x 3.11 (110 x 61 x 79) |
2.5 (70) |
Nikon D600 |
G/K Series |
$119.95 |
| BSRTYD80L |
TY-D800L |
4.5 x 2.4 x 3.1 (115 x 61 x 84) |
2.8 (79) |
Nikon D800 |
G/K Series |
$119.95 |
| BSRTY1DXL |
TY-1DXL |
4.6 x 3.2 x 5 (118 x 82 x 127) |
6 (169) |
Canon 1DX |
G/K Series |
$149.95 |
| BSRTYD4L |
TY-D4L |
4.8 x 3.43 x 4.96 (122 x 87 x 126) |
4.6 (131) |
Nikon D4 |
G/K Series |
$119.95 |
| SIRUI QUICK RELEASE BASES & PLATFORM |
Item # |
Sirui
Model # |
Size
in (mm) |
Wgt
oz (g) |
For |
|
MSRP |
| BSRLE60 |
LE-60 |
2.4 (60) |
10.2 (290) |
All Cameras |
All Tripods |
$149.95 |
| BSRPA20 |
PA-20 |
3.78 x 2.44 x 1.1 (96 x 62 x 28) |
0.3lb (0.14kg) |
All Cameras |
Arca Compatible |
$119.95 |
| BSRMP20 |
MP-20 |
3.1 x 2.2 x .79 (78 x 56 x 20) |
2.75 (0.078) |
All Cameras |
Not Applicable |
$52.95 |
| SIRUI MANFROTTO COMPATIBLE VIDEO PLATES & PLATFORMS |
Item # |
Sirui
Model # |
Size
in (mm) |
Wgt
oz (g) |
For |
For
Head |
MSRP |
| BSRVP90 |
VP-90 |
3.54 x 1.97 X 0.47 (90 X 50 X 12)(125x102x155) |
2.3 (65.6) |
All Cameras |
VH Series |
$59.95 |
| BSRVP125 |
VP-125 |
4.92 X 1.97 X 0.47 (125 X 50 X 12) |
4.2 (119) |
All Cameras |
VH Series |
$69.95 |
| BSRVP350 |
VP-350 |
18 x 3.5 x 6.1 (482 x 90 x 155) |
16.4 (465) |
Long Telephoto Lenses |
VH Series |
$134.95 |
| BSRVH90 |
VH-90 |
4.92 x 4.02 x 0.91 (125 x 102 x 23) |
20.5 (580) |
All Cameras |
Not Applicable |
$99.95 |
|
